From Analog to Digital: Crafting NAND or NOR Gates with Transistor

Analog to Digital: NPN Transistor and the Advancement of Logic Gates

The shift from analog to digital has completely changed how we interact with and experience different systems in the fast-paced world of technology. Precision, adaptability, and efficiency are provided by digital technologies, greatly enhancing our daily life. We'll look at five analog systems in this article that have made a stunning transition to digital technology.

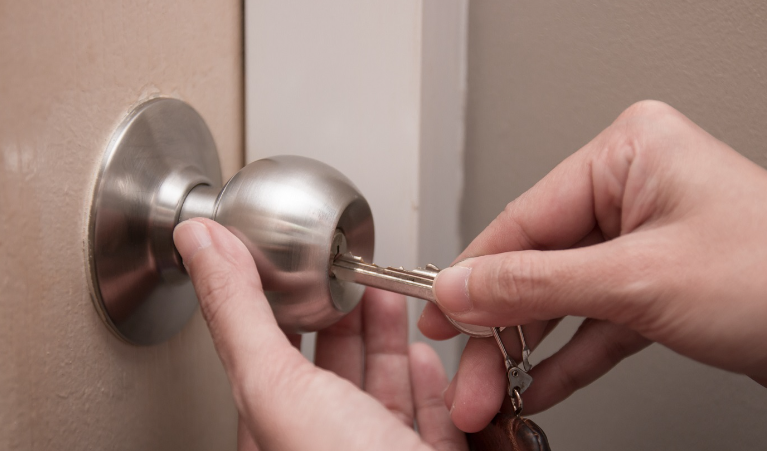

Analog Locks:

Physical keys are required to open and close analog locks, often known as classic locks. To lock or unlock a door, one must manually operate them by inserting an actual key into the lock mechanism. Analog locks have their limitations even though they have been dependable for a long time. If a key ends up in the wrong hands, users run the danger of losing it, needing duplicates, or being unable to access their account.

Smart Locks:

Analog locks have been digitally enhanced by smart locks. They make use of technologies to offer remote control and keyless entry, including Bluetooth, Wi-Fi, and RFID. Key fobs, voice commands, and smartphone apps can all be used to control smart locks. They provide a number of benefits:.

Remote Access: Smart locks let you conveniently provide guests or service providers access to your home even when you're not there by enabling you to lock or unlock your doors remotely from your smartphone.

User-specific Access: You may monitor and restrict access based on certain users or time frames by giving each person a unique digital key or passcode that they can use with smart locks.

Security Alerts: Smart locks frequently come with security features like event logs and real-time notifications, which allow you to see exactly who enters and leaves your property.

Convenience: Smart locks provide a streamlined, keyless entry experience; say goodbye to searching for physical keys.

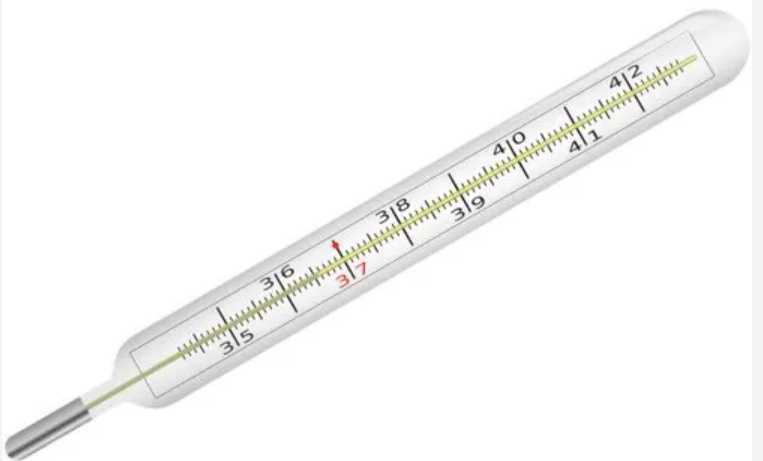

Analog Thermometer:

Analog thermometers usually measure body temperature using a liquid (often mercury) or a bimetallic strip. The user inserts the thermometer under their tongue or under their armpit and waits for the bimetallic strip or the mercury to expand or contract, displaying the temperature on a scale, to find out how hot they are.

Digital Thermometer:

Temperature measuring and health monitoring have advanced significantly with the introduction of digital health monitors. These devices monitor body temperature fast and accurately using electronic sensors, usually digital probes or infrared sensors. There is no longer a need to interpret readings on a scale because the results are shown digitally on an easy-to-read screen.

Analog Timer:

Analog timers use conventional analog mechanics, like revolving dials or analog displays, to measure time intervals. To track time, they rely on tangible parts like gears and springs. These timers are frequently used for controlling basic time-based activities or determining cooking durations. They may not be as accurate or flexible as they could be, but they do provide a clear and visual indication of the elapsed time.

Digital Timer:

Conversely, digital timers are electrical gadgets that measure and show time intervals using digital displays and circuitry. With the option to set particular time values in hours, minutes, and seconds, they provide accurate timing. Digital timers are quite flexible; they can be used for numerous timed events, alerts, and even countdowns. They are frequently utilized in many different applications where precision and programmability are crucial, such as industrial processes, laboratory tests, and kitchen appliances.

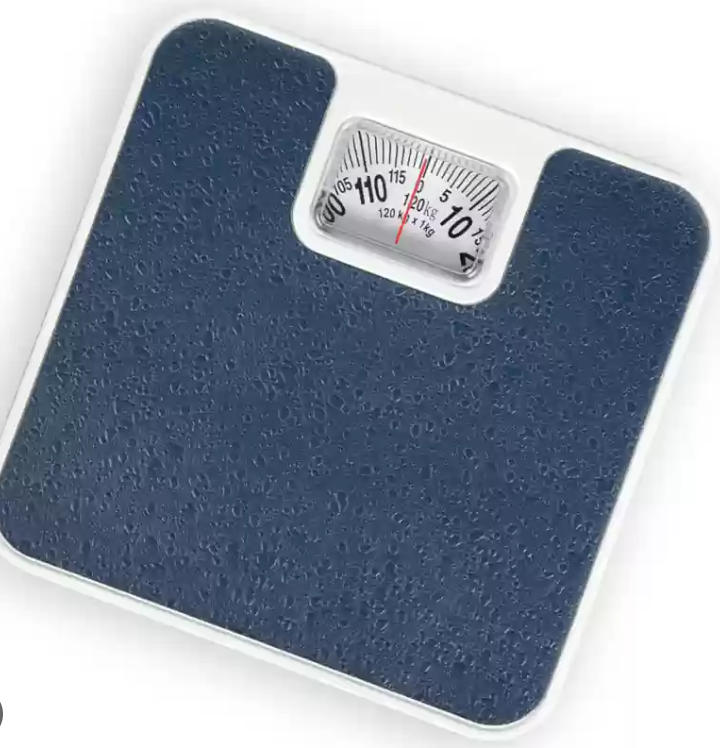

Analog Weighing Scale:

The classic spring or balance mechanism is used by analog weighing scales, sometimes referred to as mechanical scales, to determine an object's or person's weight. Usually, they have a dial or needle that indicates the weight on a scale with numbers. Users can determine the weight by looking at the needle's location directly. Although analog scales are easy to use and don't need electricity, they could not be as accurate and might have weight restrictions.

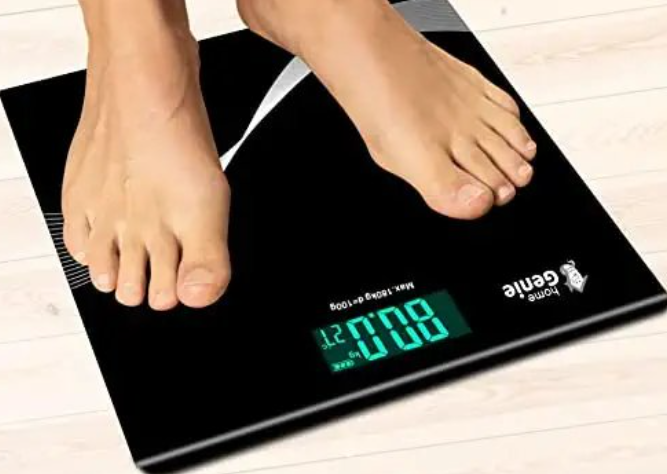

Digital Scale:

Digital scales detect weight with electronic sensors and show the result digitally on an LCD or LED screen. They give accurate weight readings together with a numerical display. Additional functions that are frequently included with digital scales include the capacity to save weight readings, convert between different units (such as pounds and kilograms), and compute body mass index (BMI). They are frequently utilized in settings where precision is crucial, such as homes, gyms, and hospitals.

Analog Tachometer:

It is a tool for calculating and displaying an engine's speed, or revolutions per minute, or any other rotating machinery. A drive mechanism that is connected to the engine or other rotating machinery is located inside the tachometer. This device converts the engine's output shaft rotation into motion that moves the pointer. An analog tachometer's main purpose is to give users instantaneous engine speed feedback. It enables the driver or operator to keep an eye on the engine's RPM and make sure it runs within efficient and safe parameters. An analog tachometer, for example, might assist a driver in shifting gears at the right moment to preserve fuel economy and avoid over-revving, which can harm the engine.

Digital Tachometer:

Digital tachometers show the RPM as a numerical readout on an electronic screen, in contrast to conventional analog tachometers. Their precision, adaptability, and user-friendly qualities are well-known. Digital signal processing is used by digital tachometers to compute RPM, frequently with great accuracy. They are useful instruments for research, industrial settings, vehicle diagnostics, and more since they provide extra features including data storage, alarms, and historical data recording. Digital tachometers that are portable and run on batteries are indispensable in scenarios where exact control over the speed of machines is required.

Building NAND and NOR Logic Circuit using NPN Transistor:

Logic gates are the basic components of digital electronics that allow us to process and work with binary data. Because of their capacity to carry out crucial logical processes, the NAND and NOR gates are particularly remarkable among these gates. We'll set out to build NAND and NOR logic circuits with NPN transistors

        In electronics, digital logic gates are essential components that serve as the foundation for creating intricate digital systems. Two of the most basic logic gates used in digital electronics are NAND and NOR gates. In contrast to the NOR gate, which executes a logical OR operation followed by a logical NOT, the NAND gate executes an AND operation followed by a logical NOT.

Components Used:

• 2 NPN transistor
• Current limiting resistor (R1, R2, R3)
• Power
• Ground

NAND Gate:

The NPN transistors in this two-input NAND gate function merely as switches. Current-limiting resistors (R1 and R2) connect the input voltages (A and B) to the transistor bases. Both transistors switch on when both inputs are HIGH (1), allowing current to flow and resulting in a LOW (0) output. One of the transistors disables itself, preventing current flow, and the output changes to HIGH if any input is LOW (1).

Truth Table:

NOR Gate:

Similar to this, the NPN transistors serve as switches in the 2-input NOR gate. Through resistors (R1 and R2), inputs A and B are linked to the transistor bases. Both transistors turn on when both inputs are LOW (0), enabling current to flow and creating a HIGH (1) output. One of the transistors switches off, preventing current flow, and the output changes to LOW (0) if any input is HIGH.

Truth Table:
